led tv backlight repair - led array repair

-

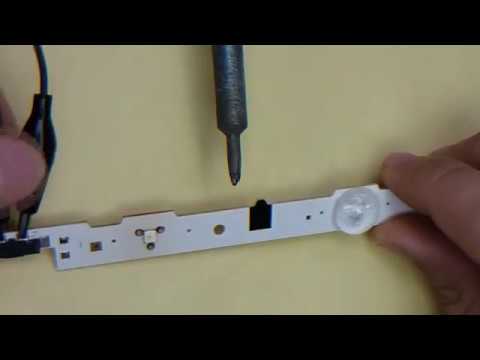

in this video you can see how to replace a dead led from a led array bar of a led tv
keep in mind that you should replace all led arrays with new but if the tv set has many led arrays and they are expensive to replace them all then this is the only way. just remember at the end to lower the setting for the backlight from the tv so the leds dont stress to much.
